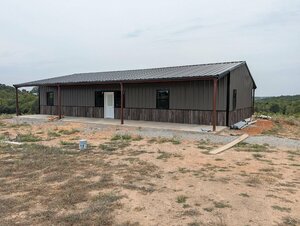

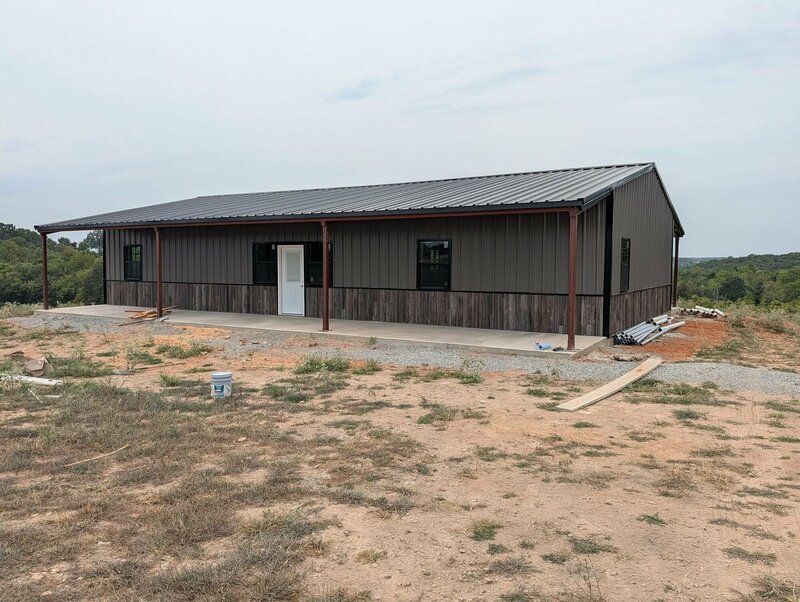

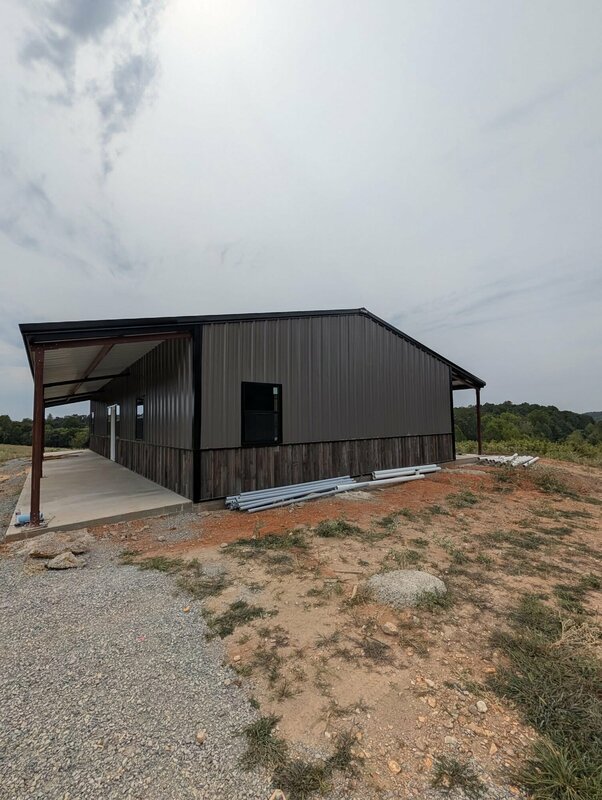

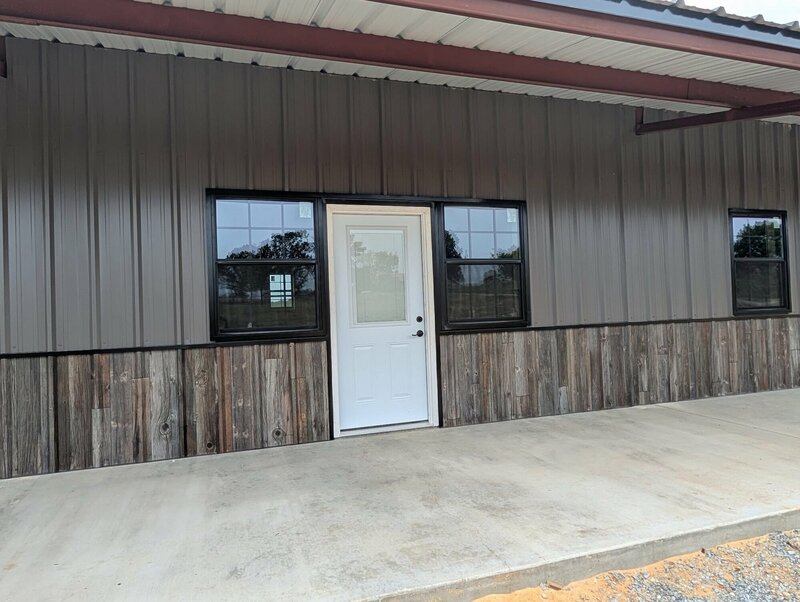

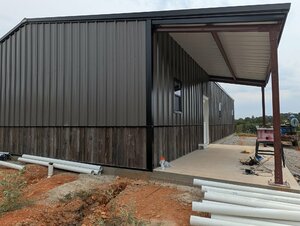

PBR, or "purlin bearing rib," denotes a type of steel panel commonly employed in metal constructions. These panels feature corrugated metal sheets with deep trapezoid-shaped ribs, supplemented by smaller ribs between them for increased durability. Widely utilized in residential and commercial metal buildings such as barns, sheds, and carports, PBR panels offer an economical solution for both roof and wall applications. Moreover, they can provide essential diaphragm support to the building's structure.
PBR Panel
PBR (R-PANEL)
Color Options
26 Gauge Colors
26 Gauge Crinkle
26 Gauge Tru-Steel HD - Digital Prints
Details
Expand
Close All
Finished Coverage
- 36"
Fasteners
- Exposed
Panel Length
- 3' to 50'
- Longer lengths are available. Contact our sales team.
Panel Gauges
- 26 Gauge
- 26 Gauge Crinkle
- 26 Gauge Wood Grain
Rib Height & Spacing
- 1 1/4" rib height with 12" on centers
Recommended Roof Slope
- 1/12 or Greater
Paint Warranties
- All painted materials have a 40 Year Warranty.
- Galvalume® has a 25 Year Warranty.
- Tru-Steel HD - Digital Prints has a 20 Year Warranty.
Documentation
Roof & Wall Systems
