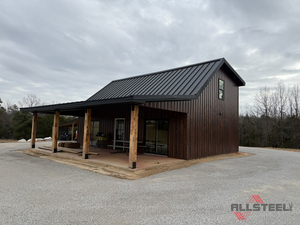

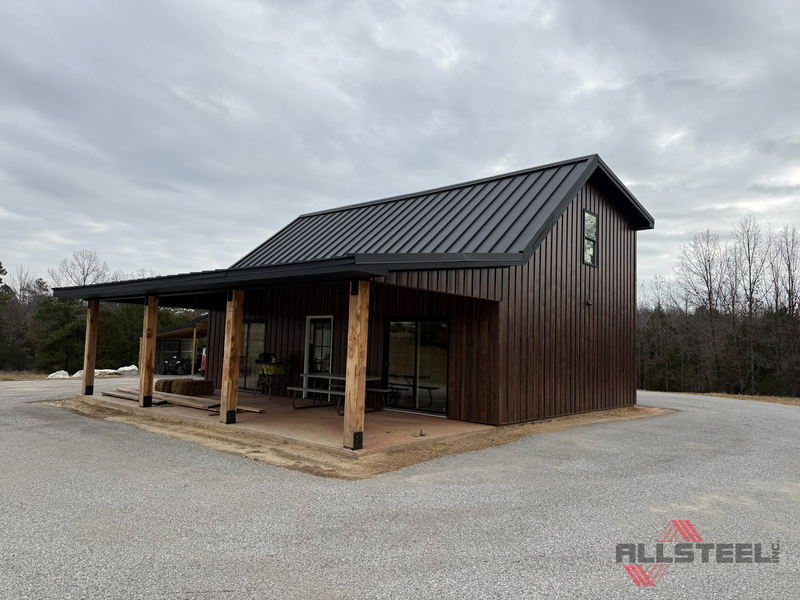

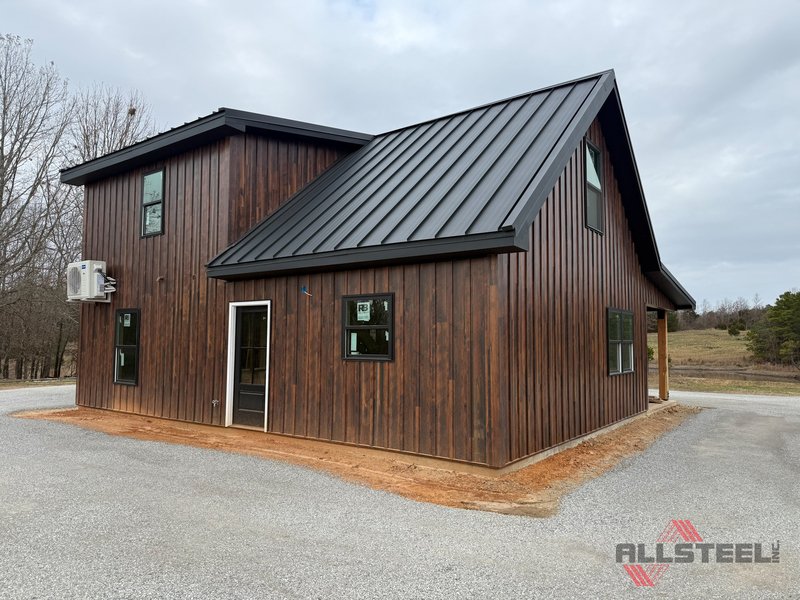

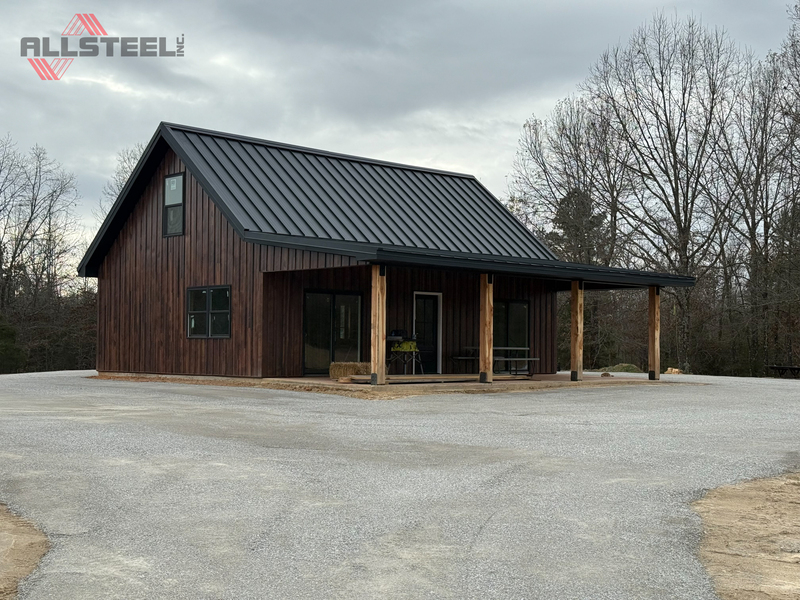

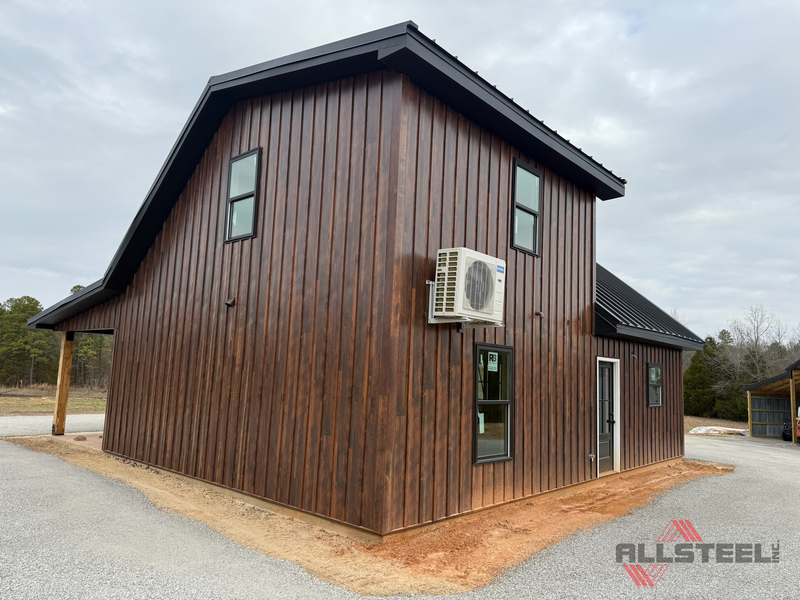

Traditional board and batten siding is a distinctive exterior cladding style characterized by wide vertical boards with narrow strips of wood (battens) covering the seams, creating a unique aesthetic that is often rustic or modern farmhouse-inspired. With the introduction of metal board and batten panels, the possibilities have expanded exponentially, catering to residential, agricultural, and commercial applications. Metal board and batten panels boast a 2” batten that securely locks into the nailing slots on the adjacent panel end, replicating the traditional wood siding while leveraging the advantages of 26-gauge steel. The versatility of metal board and batten enables its use on entire structures, including homes, shops, garages, barns, and commercial buildings, as well as accent elements. As barndominiums continue to gain popularity, metal board and batten is becoming increasingly sought after, available in a range of colors, including our standard colors, crinkle finish, or our most popular Tru-Steel HD® woodgrain finish. Metal board and batten can be paired with our metal lap siding or any other panel to create visually appeal contrast.
Details
Expand
Close All
Finished Coverage
- 10"
Fasteners
- Hidden Fastener System
Panel Length
- Any (Ran Onsite)
Panel Gauges
- 26 Gauge
- 26 Gauge Crinkle
- 26 Gauge Wood Grain
Rib Height & Spacing
- 3/4" rib height with a 10" coverage per panel
Paint Warranties
- All painted materials have a 40 Year Warranty.
- Galvalume® has a 25 Year Warranty.
- Wood Grain Finishes have a 20 Year Warranty.
